立式防水Micro USB接口参数:

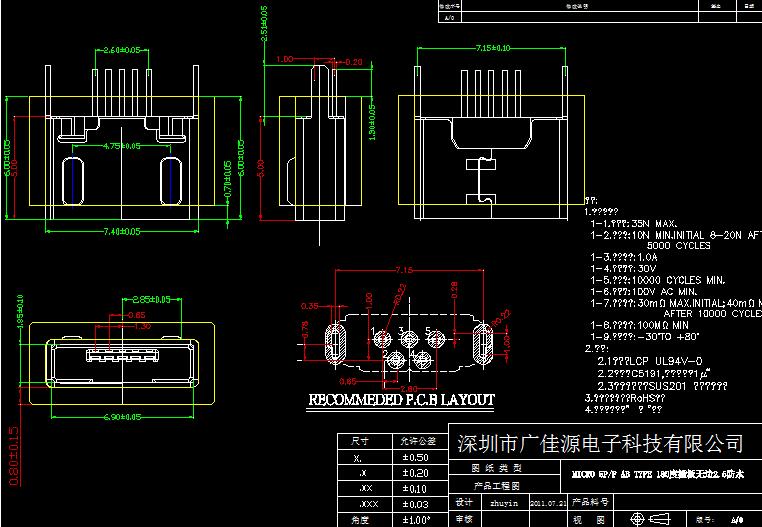

Notes:
1. Dimension shall be interpreted per ASME Y14.5M1994.
2. Dimension marked & should be checked by
   Q.C. and process, engineers and should also
   check the CPK data.
Specification:
1. Current Rating: 1.0 AMP
2. Voltage Rating: 30V AC,DC
3. Dielectric Strength: 500V AC RMS for 1 minute.
4. Contact Resistance:  30 m Max.
5. Insulator Resistance:500M Min. AT 250V DC.
6. Mating/Unmating cycles: 2000cycles
7. Temperature: -20°C to +60°C

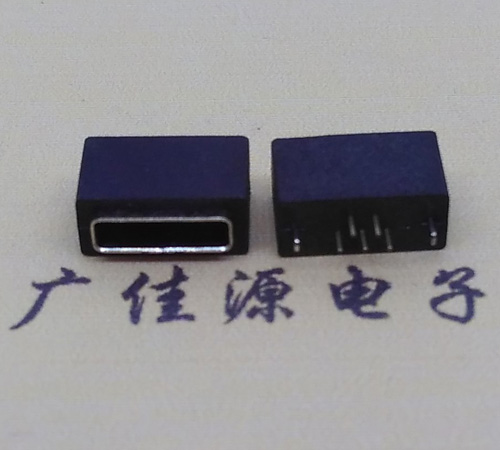

防水Micro母座分为有：Micro方口防水母座、Micro USB防水AB型、SMT防水板上连接器、沉板型USB连接器。Micro USB连接器比标准USB和Mini USB连接器更小，节省空间，具有高达10000次的插拔寿命和强度，盲插结构设计。Micro USB标准支持目前USB的OTG功能，便携设备之间可直接实现数据传输。
