SPECIFICATIONS:
1.ELECTRICAL CHARACTERISTICS:
1.1.RATING: 1.5A
1.2.CONTACT RESISTANCE: 30 mΩ MAX.(INITIAL);
1.3.DIELECTRIC WITHSTANDING: 500V AC MIN.;
1.4.INSULATION RESISTANCE: 1000MΩ MIN.;
2.DURABILITY: 5,000 CYCLES MIN.;
3.INSERTION FORCE: 3.5Kgf (35N) Max.;
4.EXTRACTION FORCE: 0.8Kgf (8N) Min;
5.WATER PROOFNESS:THIS PRODUCT IS BASED ON IPX7
6.PLUG INTERFACE DIMENSIONS COMFORM TO USB2.0 SPEC.
7.PACKAGING: TAPE & REEL.

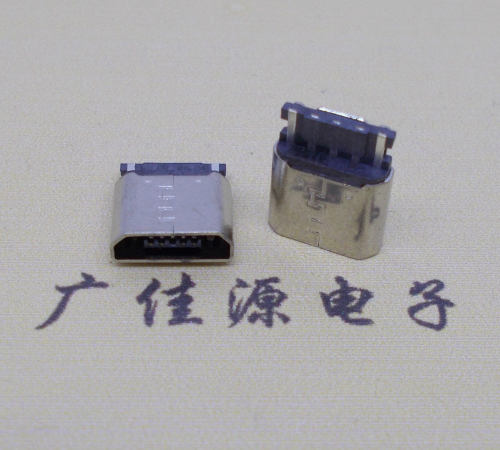

简易焊线micro usb 2p母座广泛用于手机、数码、汽车、无人机、硬盘等设备、工业互联设备,散装包装方式。

温馨提示:micro usb不导通有两种原因,接触面包胶,接触面歪斜,与公端子接触不到,如这两种问题排除了,就是焊接不良,公端子pin下限不良。
