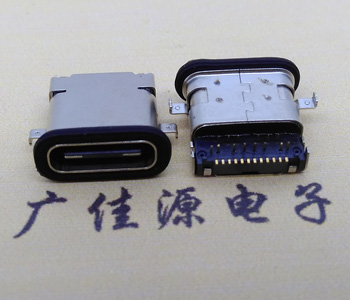

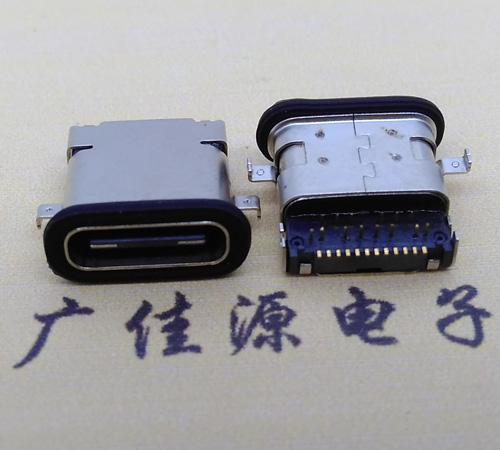

防水USB Type C母座性能:
1.MATERIAL: SEE "TABLE 1";
2.FINISH: SEE "TABLE 1";
3.ELECTRICAL :
3-1.CONTACT CURRENT RATING :
5A(VBUS PIN 1.5A/PIN),
5A(GND PIN 1.25A/PIN MAX),0.25A/PIN(OTHER PIN).
3-2.INSULATION RESISTANCE :
100 MEGAOHMS MIN. AT 250VDC.
3-3.DIEELECTRIC WITHSTANDING VOLTAGE :
100VAC MIN.
3-4.LOW LEVEL CONTACT RESISTANCE :
INITIAL 40m? MAX.
AFTER 50m? MAX.
4.MECHANICAL CHARACTERISTICS :
4-1.MATING FORCE: 5~20N.;
4-2.UNMATING FORCE: 8~20N(INITIAL),6~20N(AFTER 10000 CYCLES);
4-3.DURABILITY : 10,000 MATING CYCLES.
4-4.OPERATING TEMPERATURE :-40°C TO +80°C
